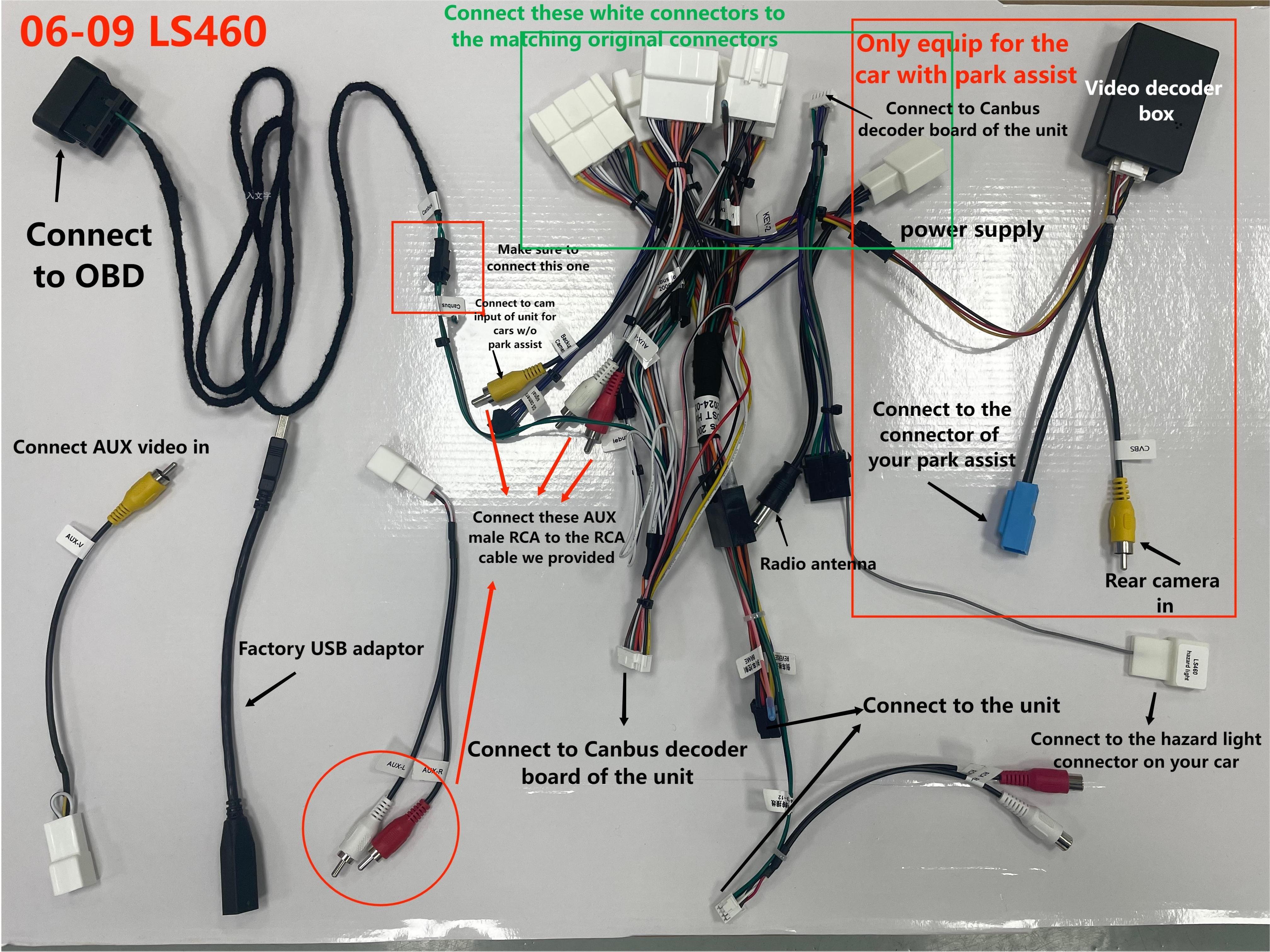

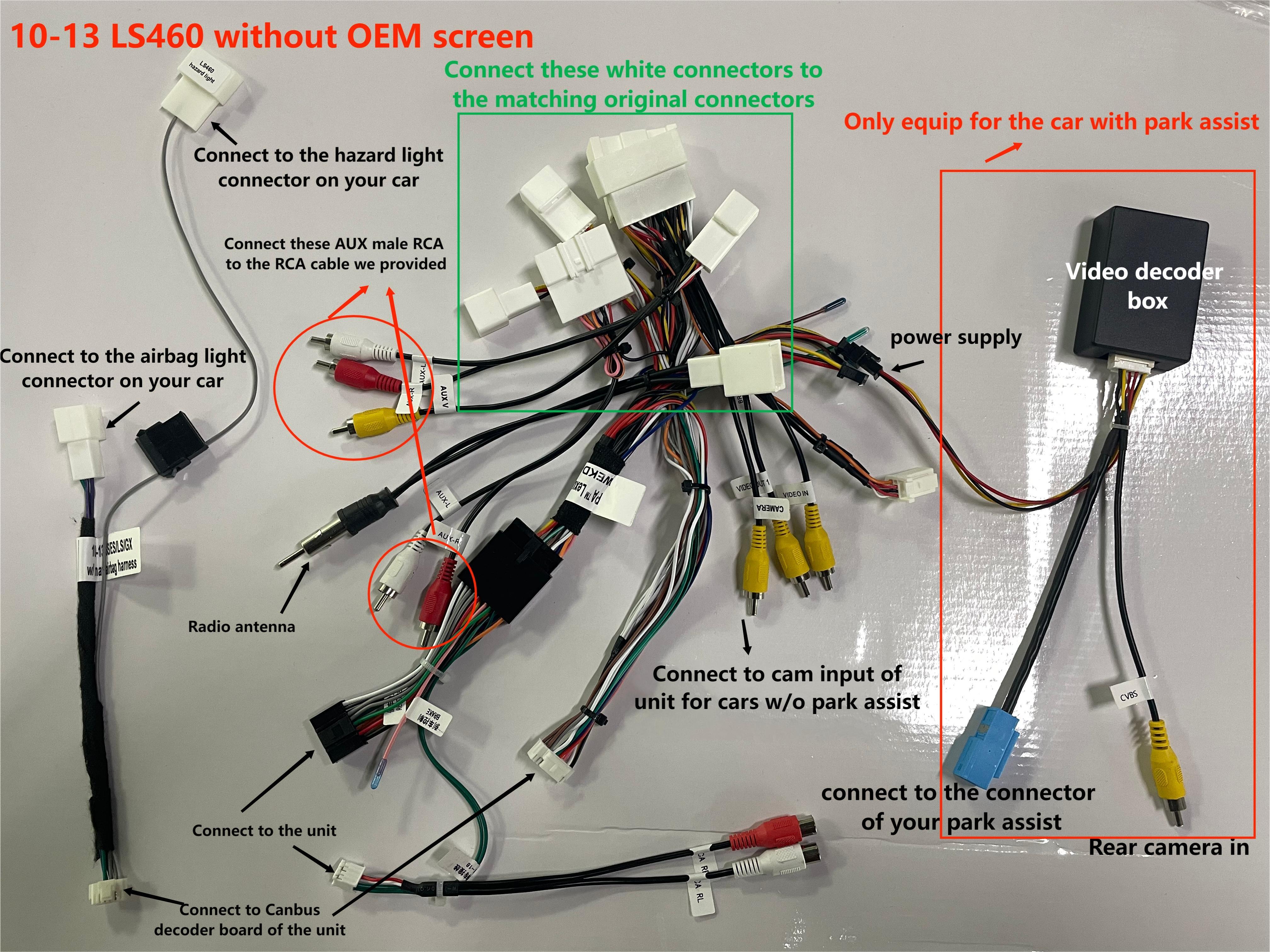

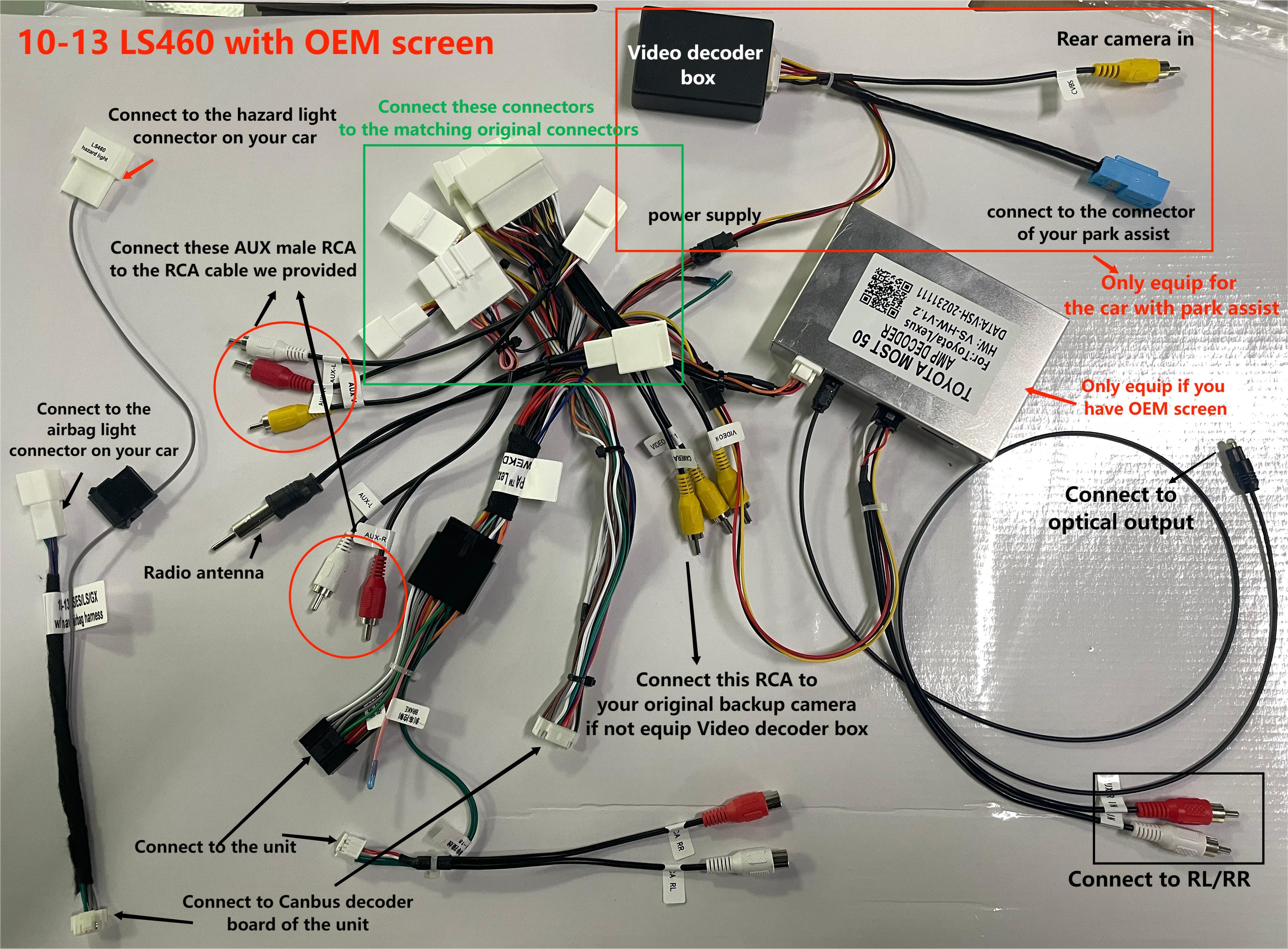

Wiring diagram of SC7862 unit for Lexus LS460 Print
Created by: Ruby Chen
Modified on: Fri, 22 Mar, 2024 at 1:06 AM
