- How to connect the unit for 2009 - 2012 Dodge RAM refer to: https://youtu.be/a0XR7dbtjnk
- How to connect the unit for 2013 - 2018 Dodge RAM refer to: https://youtu.be/Dpubu24b0vg

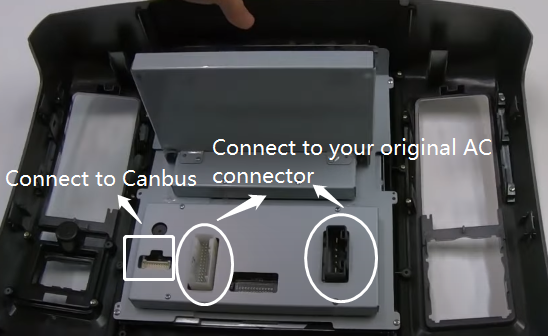

- You may receive units with different AC boards depending on the model year and AC type. You should connect all your OEM AC connectors to our AC board. If you have OEM AC connector having nowhere to connect and/or AC control is not working, please contact us to check if AC board is the wrong type.
- If on-screen AC control is not working, check if 8 pin connector with green and green/black or white and white/black wires is connected to the back of the unit.
- For 2013 - 2018 model years, to retain OEM camera, connect male RCA labeled 'Camera' from the black connector connected to the vehicle and female RCA labeled 'CCD Camera'.
- Special tips for 2009 - 2012:
- If you have AC outlet, you can move that to the right of the unit. If you don't have one, just remove the black piece.
- There have 2 sets of buttons on your original unit, one would be on the top of the unit, and another would be on the center of the unit, you need to move down that set of buttons with hazard light button on it to the bottom of our unit.
