• How to install the unit refer to: https://youtu.be/v3ooAXZTsvc
  • Onstar retained; turn signal sound and door chime retained; Hybrid page retained.
  • Long press to program the side physical buttons, refer to: https://youtu.be/OZhknvTLQeQ
  • For vehicles with Auto AC, please mount the factory AC board on the back of our unit like shown in the video. For vehicles with manual AC car, just connect the factory AC connectors to the back of the unit.
  • Before you install the unit, please separate the bezel piece from the screen and the radio brain and install the screen and the brain to the car first after you connected all the cables.
  • There are two identical black connectors on the power cord, one is for with OEM amplifier, and the other is for without OEM amplifier, connect the one according to your OEM setup.
  • To make connections to the head unit, just match connectors and/or labels. If on-screen AC control is not working, check if 8 pin connector with green and green/black or white and white/black wires is connected to the back of the unit.
  • DO NOT use external MIC unless the built-in and OEM one is not working.
  • The factory GPS antenna can be retained with adapter included, but can also install the aftermarket GPS antenna we provide.

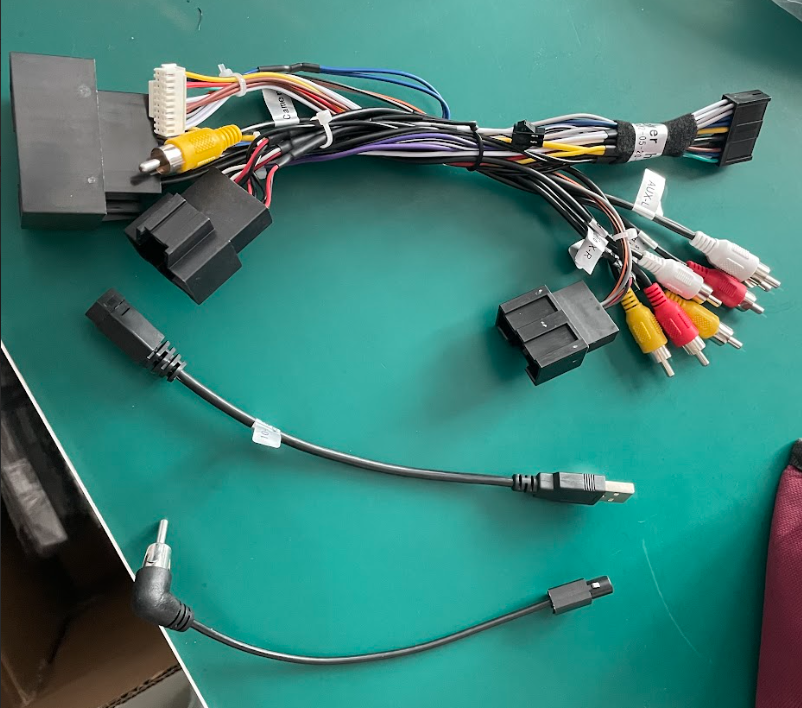

  • If you have OEM touch screen unit, you may need main harness with big connector, different radio antenna and USB adaptor like the picture below. Please contact us if you received harness not matching your OEM connectors:

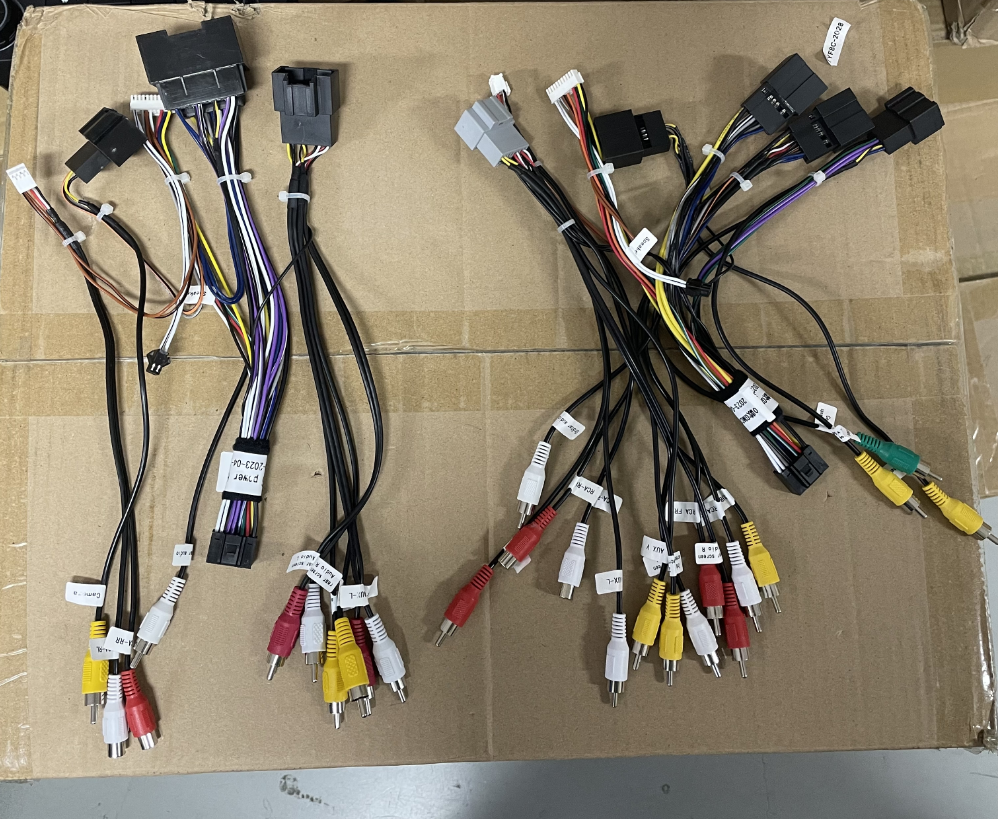

  • Here is the picture of two different kinds of main harnesses. Depending on the batch, you may or may not need to use the main harness adaptor:

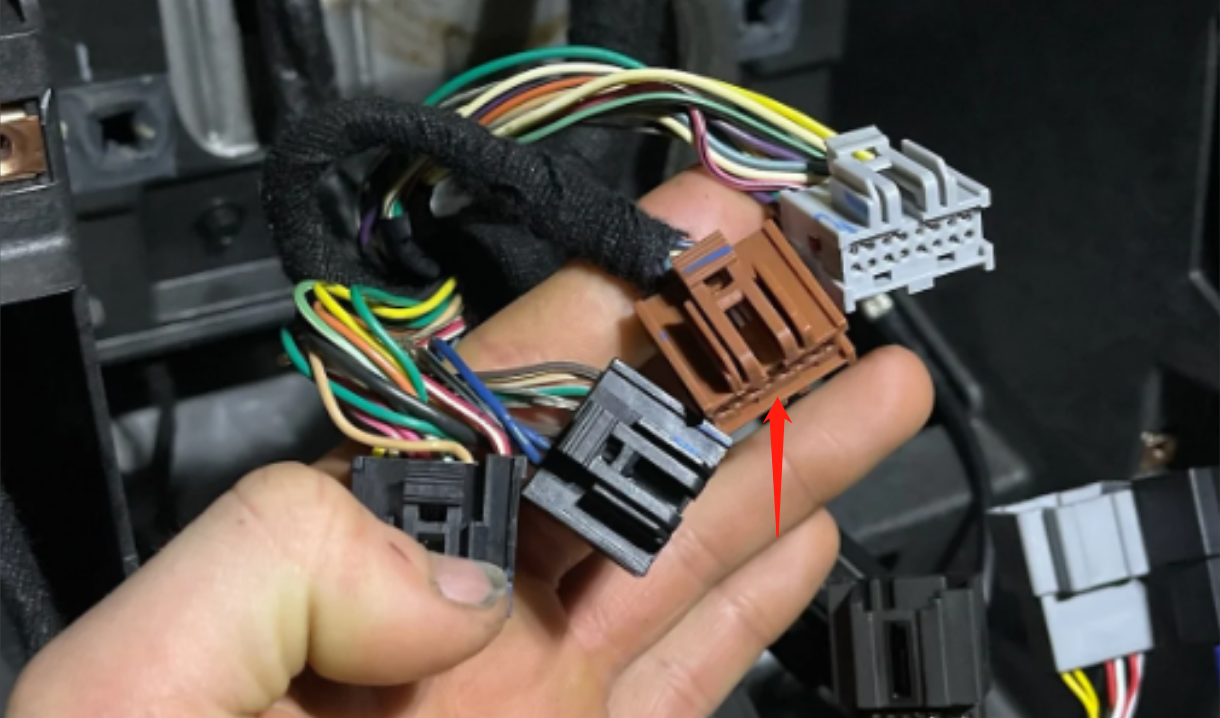

  • The connector for OEM backup camera may be mismatched if you have no big connector for OEM radio. You need to make sure the male RCA labeled 'CAMERA' goes to the brown OEM connector indicated in below picture.

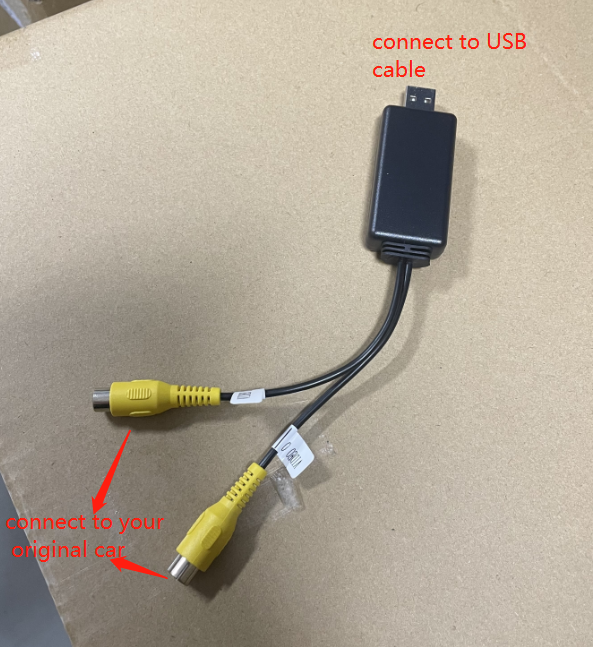

  • How to retain the Rear entertainment system: the OEM rear screens are powered. You just need to feed RCA video signal to the male RCA in our harness labeled "2nd/3rd row video". We will provide the USB to RCA converter box if we know that you have RES before shipping. The female RCA from the box connects to the male RCA in our harness labeled '2nd row video' and '3rd row video'.

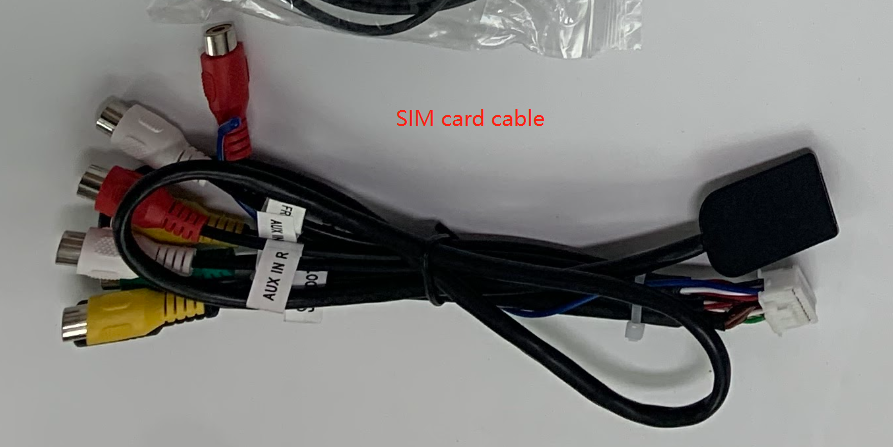

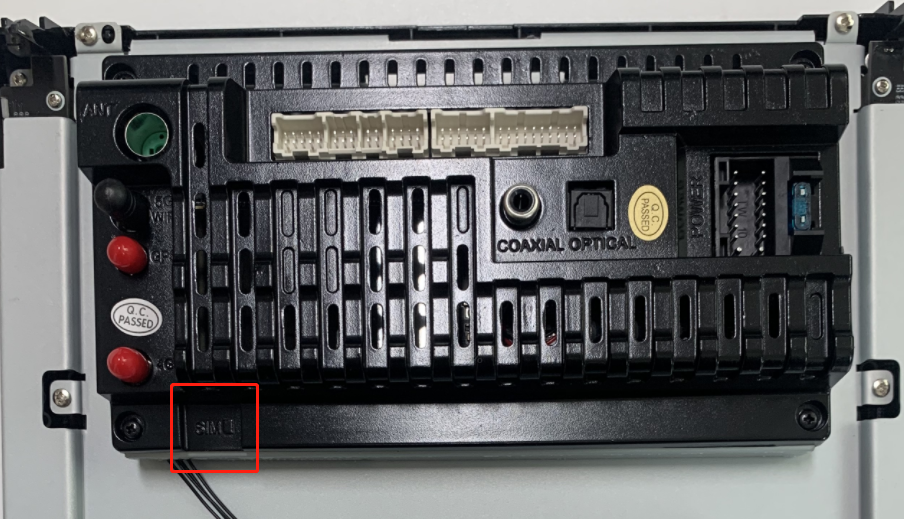

  • The sim card can be put into the back of the unit and also the sim card reader cable we provide. T-mobile would be better to work in our unit for now.
