• How to install the unit refer to: https://youtu.be/2So1yAJxJ8E
  • You may need to cut off small pieces of protrusions of the dash to fit the unit in. No extensive cutting of the dash needed like old version units.
  • The harnesses and the software are different for 2011 - 2014 and 2015 and later model years. If the harnesses do not match OEM connectors or unit not powering on, please contact us.
  • Connect matching connectors to the vehicle connectors. Disregard ones that do not match. To make connections to the head unit, just match connectors and/or labels. If on-screen AC control is not working, check if 8 pin connector with green and green/black or white and white/black wires is connected to the back of the unit.
  • To retain OEM camera, connect male RCA labeled 'Camera' and female RCA labeled '(CCD) Camera'. For 2015 and later model years, the male RCA should be from the black connector not the white one.
  • DO NOT use external MIC unless the built-in and OEM one is not working.
  • Depending on the batch, you may or may not need to use the main harness 20 to 16 pin adapter.

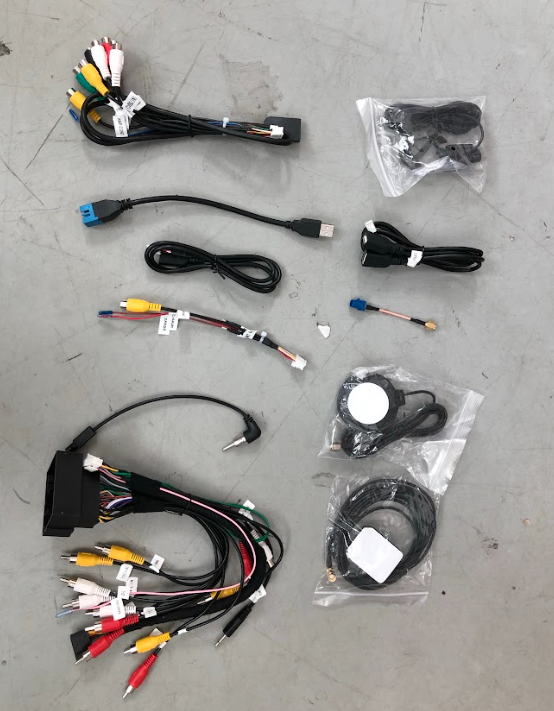

  • The cables for 2011-2014 Chrysler 300:

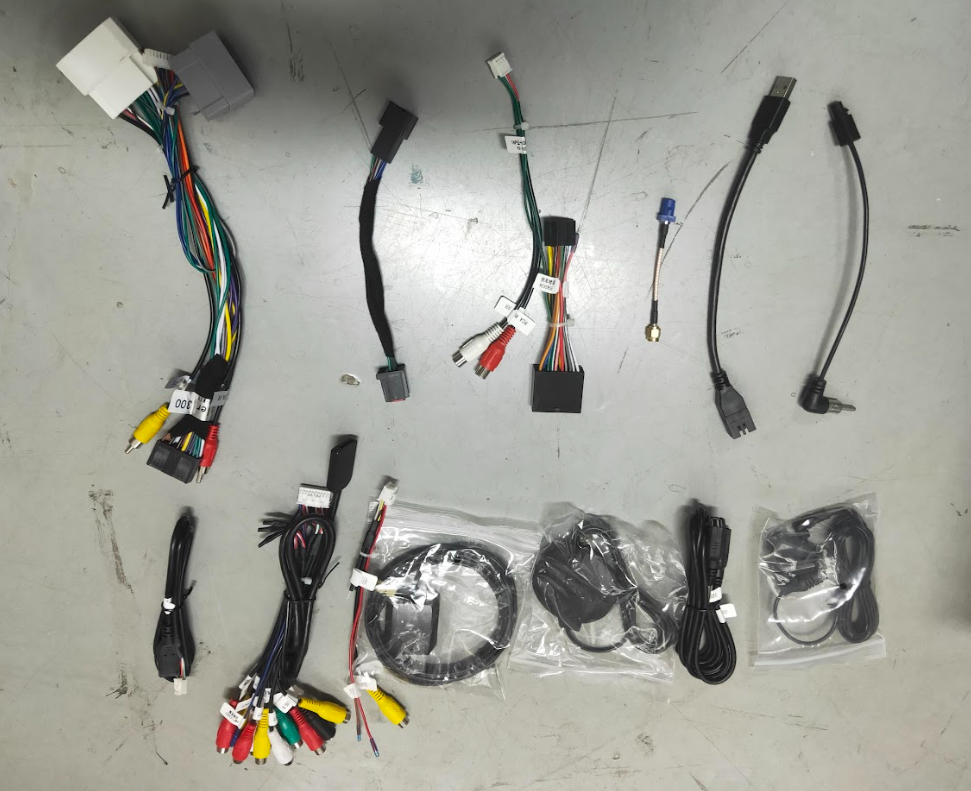

  • The cables for 2015 and above Chrysler 300:

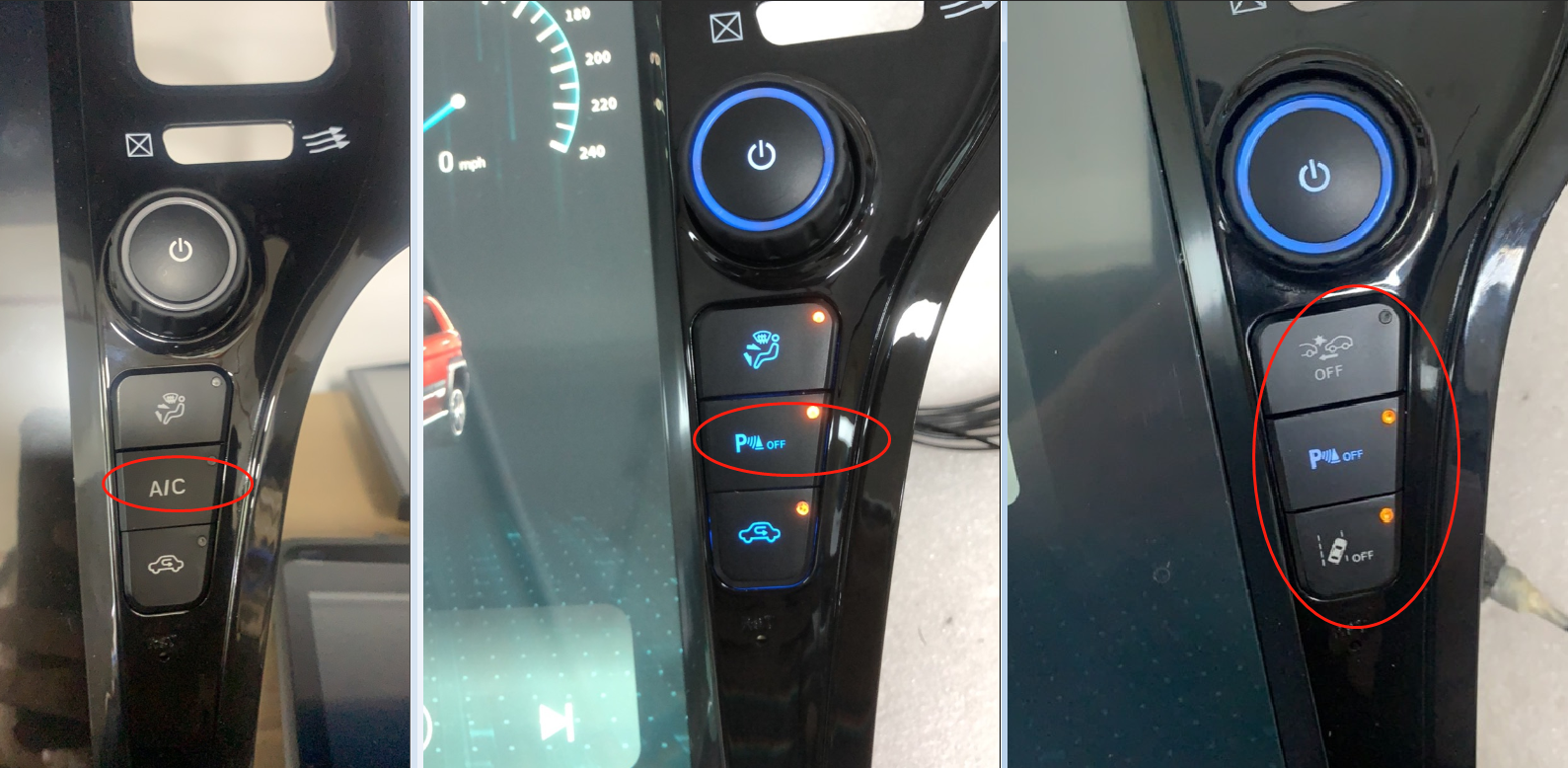

  • We have 3 different variants of buttons. Regardless of the icons, you can switch the function of the button to the other variation by press and hold the button for at least 15 seconds:
