- How to connec the unit refer to: https://youtu.be/G3Gw7vICCYk
- To make connections to the head unit, just match connectors and/or labels. If on-screen AC control is not working, check if 8 pin connector with green and green/black or white and white/black wires is connected to the back of the unit.
- The radios for 2005 - 2011 and 2012 to 2015 model years are different. If the radio does not fit the dash, please contact us.

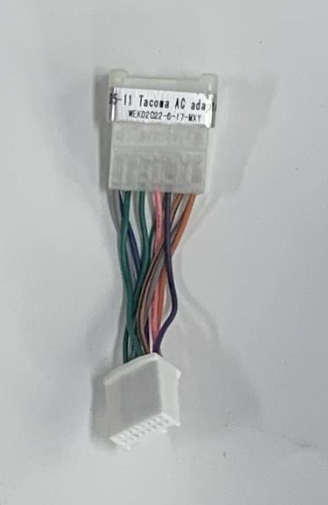

- For 2005-2011 model years, you need the AC adaptor pictured below; if you did not receive it, please contact us.
- For 2005 - 2011 model years, if the radio does not go all the way in, you need to cut off four small pieces that do not affect the structural integrity. Please refer to: https://youtu.be/wdgd-J_Ysi0
- If the temperature control is reversed, ie, setting low temperature blows hot air, you just need to go to car settings to change temperature polarity.
- To retain OEM camera, connect male RCA labeled 'Camera' and female RCA labeled '(CCD) Camera'
- If the backup camera cannot switch when you put it in reverse, please check if you have connected the OBD wire.

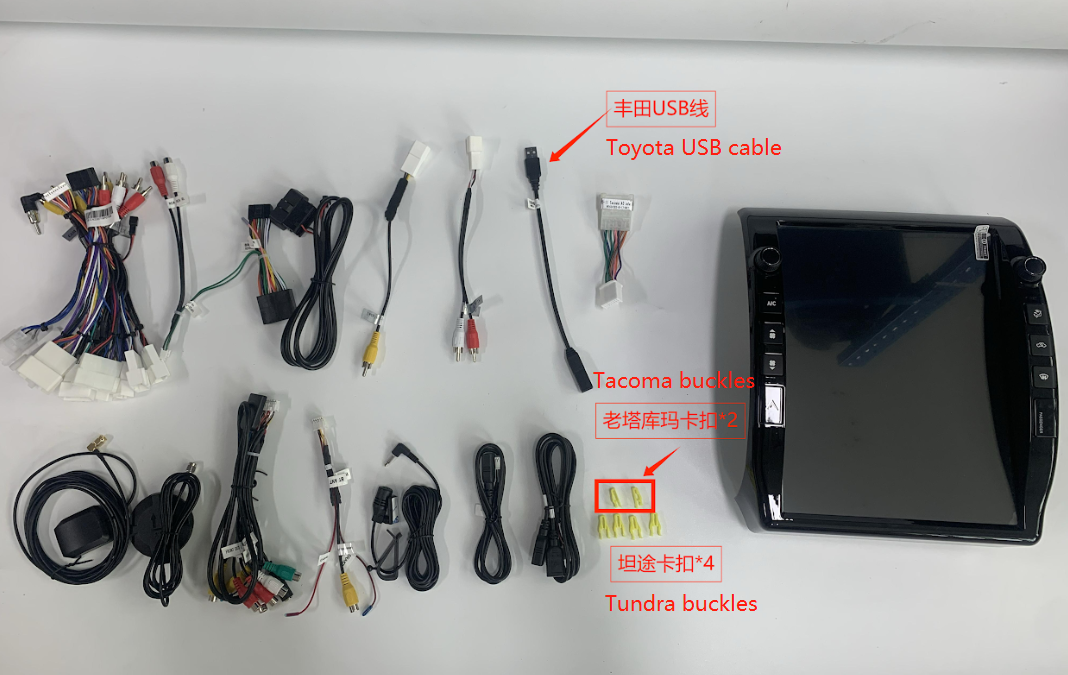

- The cables we equipped:

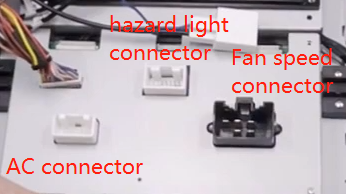

- The connectors of the back of the unit that need to connect to your factory connectors:
AC connector: 2015-2011 car need to connect the adaptor, 2012 and above just plug the factory connector directly.
Hazard light connector and Fan speed connector: Press the physical buttons beside the unit to see if it can work after you plug into the factory connectors. If any of the connectors pictured below are missing, please contact us.

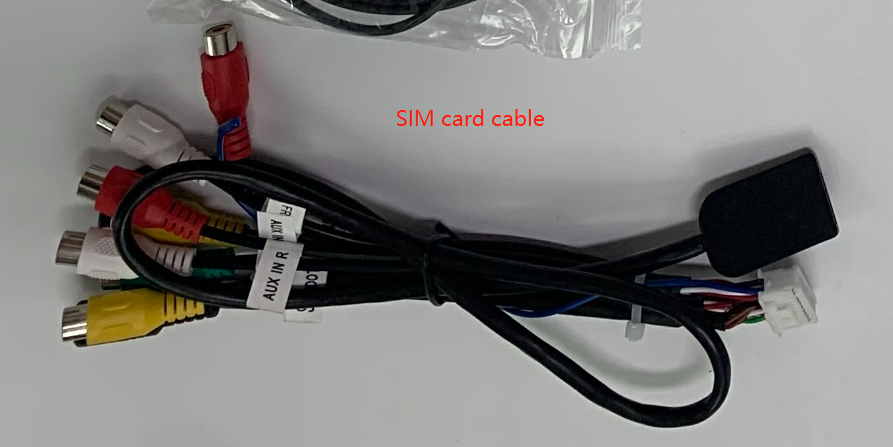

- The sim card can be put into the back of the unit and also the sim card cable we equipped. T-mobile would be better to work in our unit.
- DO NOT use external MIC unless the built-in and OEM one is not working
