• How to install, please refer to: https://youtu.be/21K5TWoxSEE
  • Onstar retained. Hybrid page and TPMS info supported.
  • To make connections to the head unit, just match connectors and/or labels. If on-screen AC control is not working, check if 8 pin connector with green and green/black or white and white/black wires is connected to the back of the unit.
  • How to retain the Rear entertainment system:  we will provide the AV out box. The female RCA from the box connects to the male RCA in our harness labeled '2nd row video' and '3rd row video'.

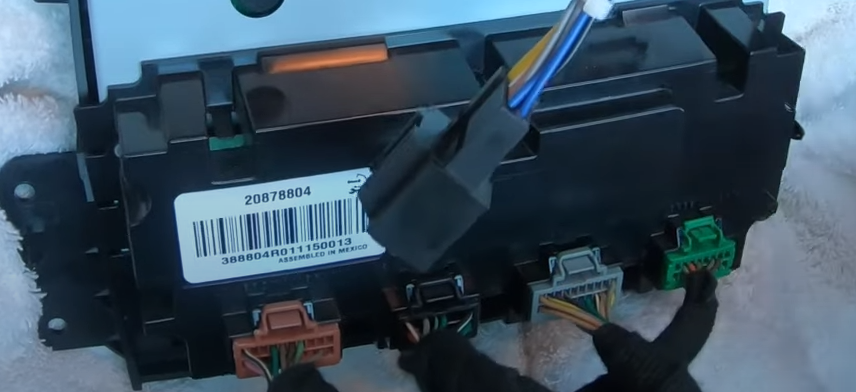

  • The factory AC board need to be attached to the back of the unit when installing the unit in order for the AC control to work. Please refer to the video linked above.

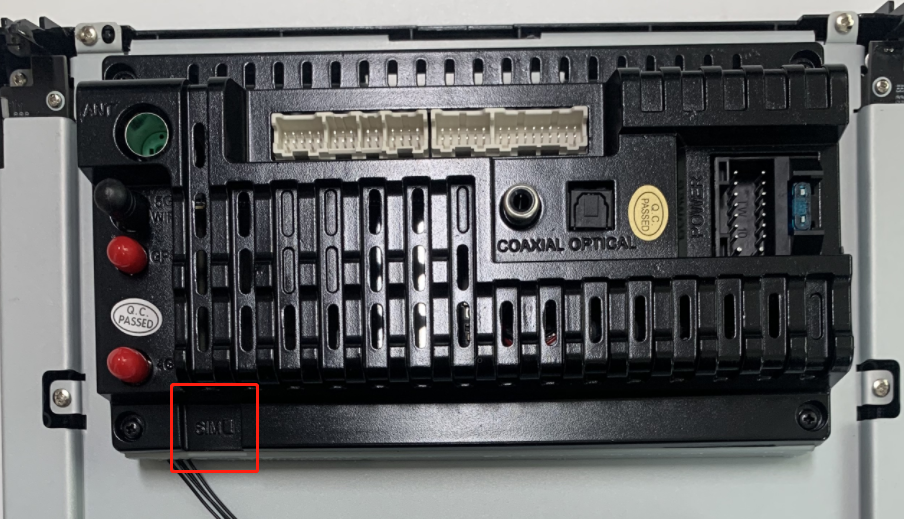

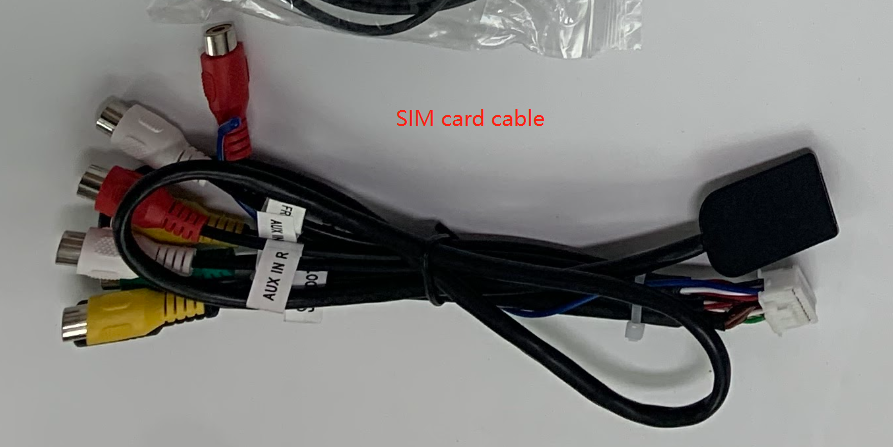

  • The sim card can be put into the back of the unit and also the sim card cable we provide. T-mobile would be better to work in our unit.

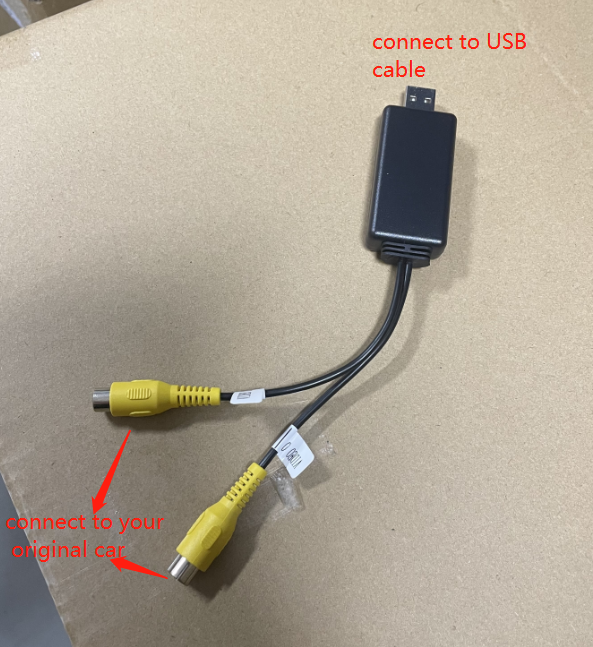

  • To retain the factory backup camera, please connect the female RCA(yellow) on the backup camera cable labeled '(CCD) CAMERA' to the male RCA(yellow) on the power cord. The male CAMERA RCA in the picture b should go to the brown connector in the vehicle.
  • DO NOT use external MIC unless the built-in and OEM one is not working
  • How to connect the power cord if you have the factory amplifier and backup camera. The RCA connectors from the 'For w/ amp' connector needs to connect to FL, FR female RCA from the head unit.
  • How to connect the AC connectors:

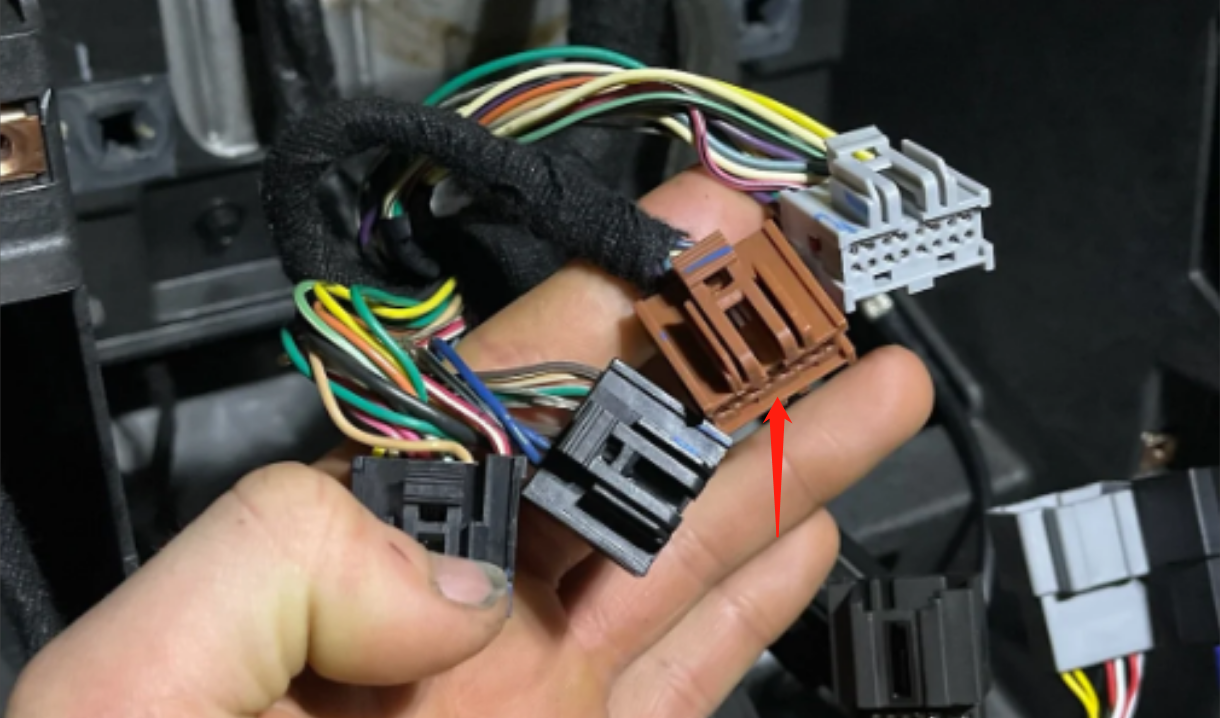

  • The connector for OEM backup camera may be mismatched if you have no big connector for OEM radio. You need to make sure the male RCA labeled 'CAMERA' goes to the brown OEM connector indicated in below picture.
  • If you received the unit before May 2023 and have draining battery issue: Please follow this video to update the file: https://www.youtube.com/watch?v=1mZmODS4ehM&t=6s --- Update file: https://www.dropbox.com/s/hp9k87m2apkbfdn/simplecanupdate.bin?dl=0
