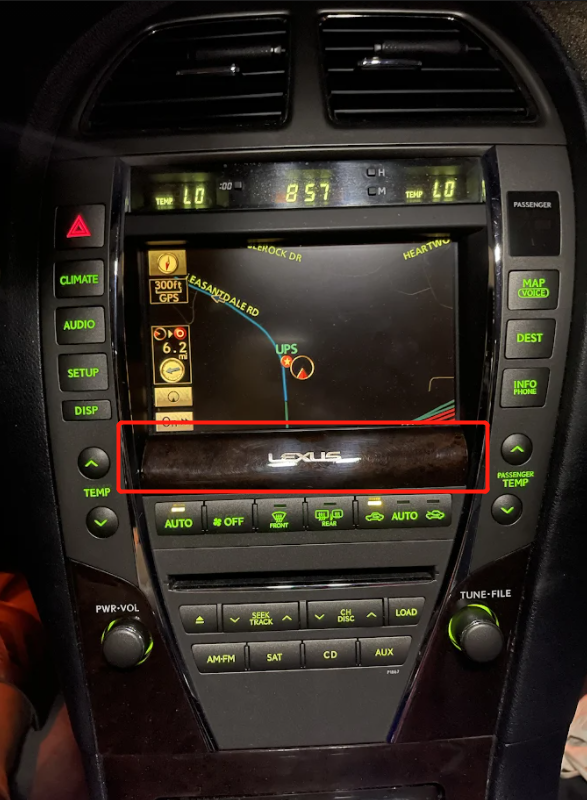

With Navigation Vehicle

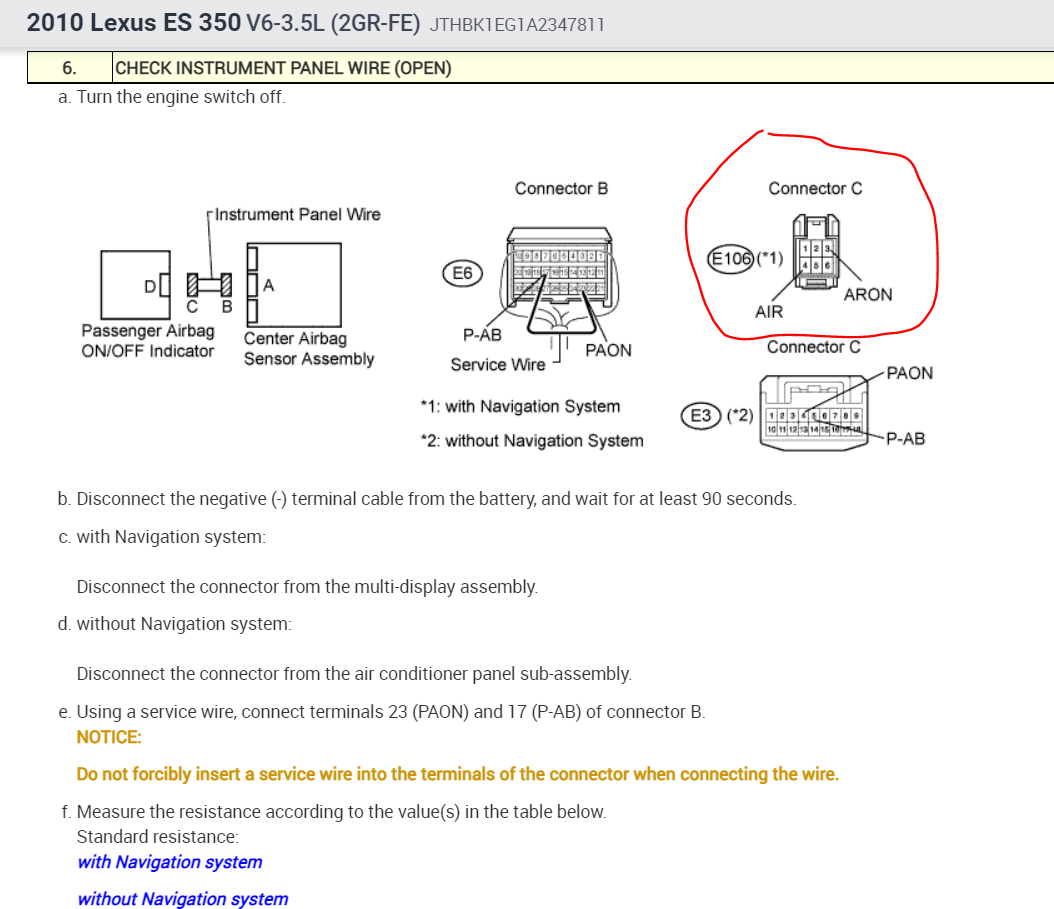

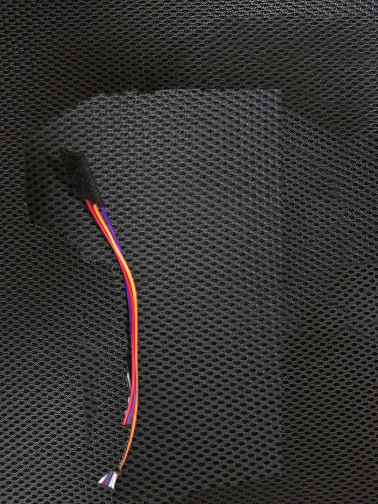

Airbag Light Constant On Wiring
Orange --> ARON
Purple --> Air

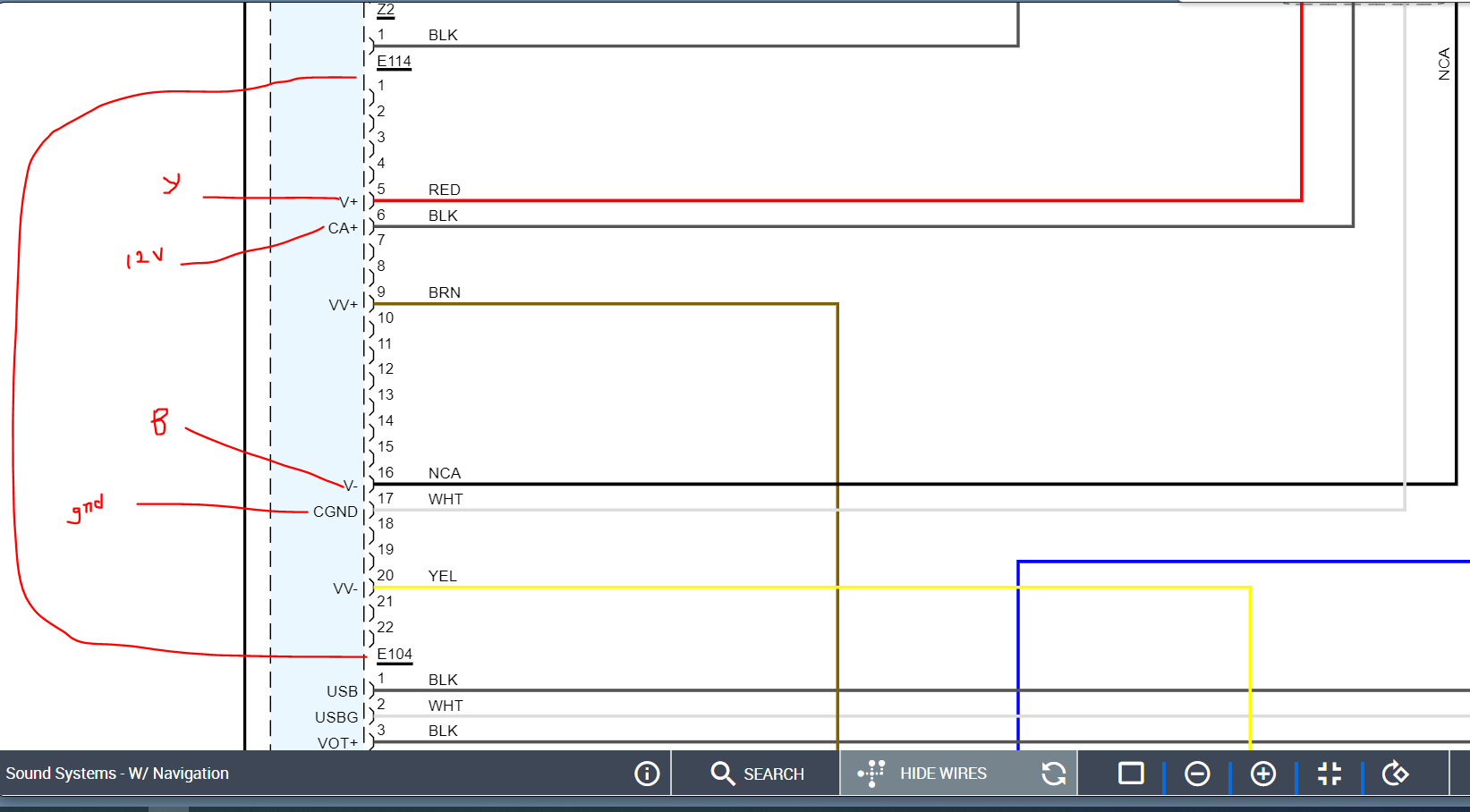

FacCamera Wiring
Only Camera12 Volt power needed
Only Camera V+ video feed needed for Male RCA
Lexus ES350 2009 High Trim Camera & Airbag Diagram Print
