PS: To install this android screen, the car must equip with an AUX-IN port.
If there is no AUX-IN port on your car, will need to buy an FM transmitter.

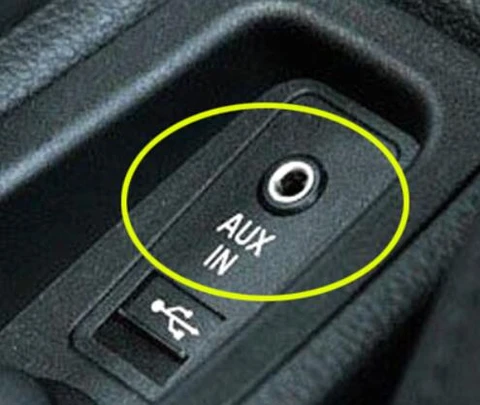

aux port in the car

If your BMW 7 Series E65 E66 which do not have AUX, how to install this android screen?
There are two ways:

A: Active the AUX-in your car, this is the best way, the BMW service or some tuning shop can offer this service.

B. Use an FM stereo Modulator, to switch the Audio signal from the Android Navi head unit to the car speaker directly.

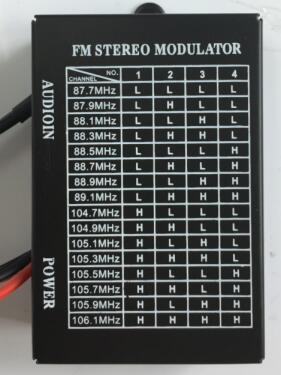

fm stereo box that can switch the audio from head unit to speaker directly



Notice:

1. The android screen from our website fits for BMW 7 Series E65 E66 (2004-2009) with the original CCC system
(10 pin LVDS).

2, The android screen is an 8.8-inch screen, it will replace the original 6.5'' /8'' screen, but it keeps the original CD/Radio head unit in the car, thus it supports all original functions: Such as factory radio (FM), steering wheel controls, idrive, parking sensors, factory navigation, original vehicle display and so on.

It is easy to switch the menu between the original CCC menu and the Android menu, the iDrive working in both the original menu and the android menu. it is a perfect navigation retrofit & upgrade for BMW E65 E66.

3. The installation is plug and play, no cutting the wires, no modifications, no need to program your car when installation.

4, If your BMW E65 E66 with a factory navigation system, when installing our android screen, you also need to install the GPS antenna (can not use the original GPS antenna or make a retrofit for the GPS antenna).

Installation steps

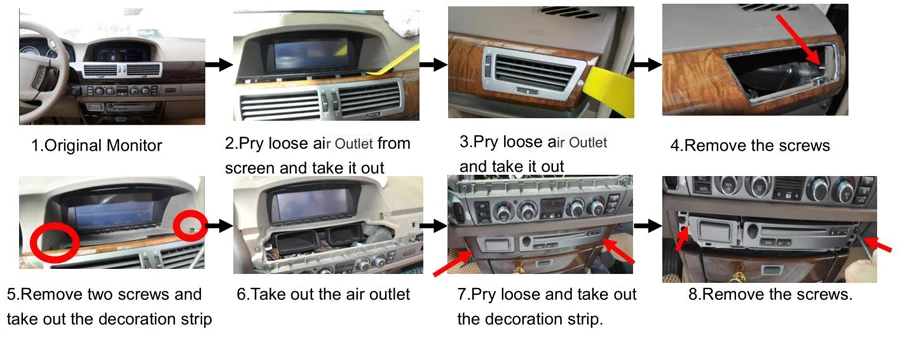

bmw 7 series e65 e66 navigation installation from step 1 to step 8

bmw e65 e66 navigation installation guidence from step 9 to step 12

android bmw 7 series e65 e66 navigation installation from step 13 to step 20

aftermarket bmw 7 e65 e66 navigation installation from step 21 to step 24



1, To enhance the user experience, you can install a backup camera, when you back the car (switch the gear to " R " - reverse mode), the android screen can show the rear-view pictures automatically. You can buy the backup camera from our shop and send it together with your order.

2, Also you can install an Apple Carplay dongle, the Carplay dongle supports both Apple Carplay and Android auto. To purchase, click the link; https://phoenixautomotiveins.com/products/wireless-apple-carplay-usb-dongle?_pos=1&_sid=9fa03f3b5&_ss=r



Link to purchase the head unit unit:
https://phoenixautomotiveins.com/products/8-8-android-navigation-radio-for-bmw-7-series-e65-e66-2003-2008?_pos=19&_sid=92f343dcd&_ss=r
