Created by: Chris Shao

Modified on: Tue, 24 May, 2022 at 12:57 PM

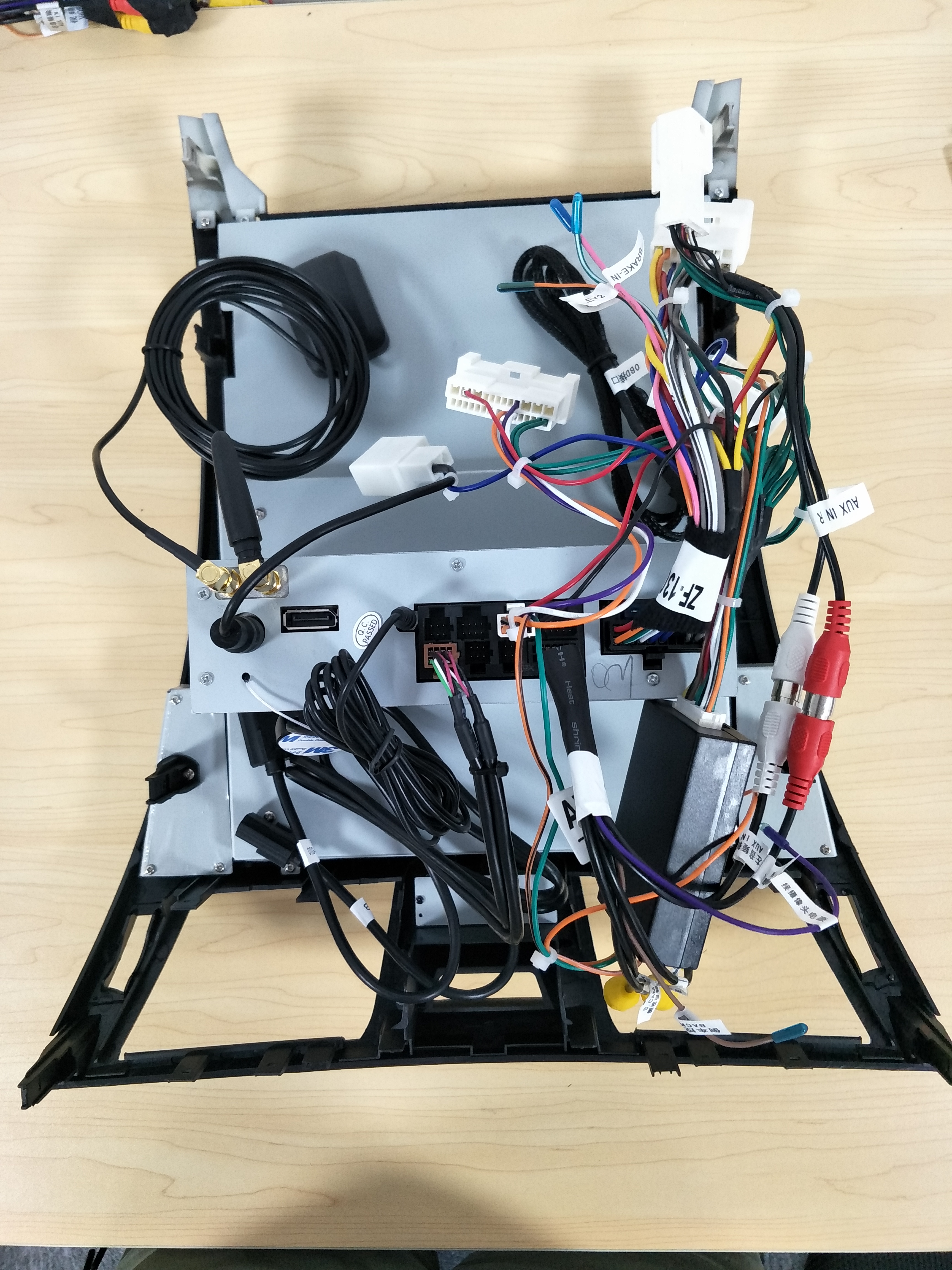

Matching Connectors - leave all other connectors empty

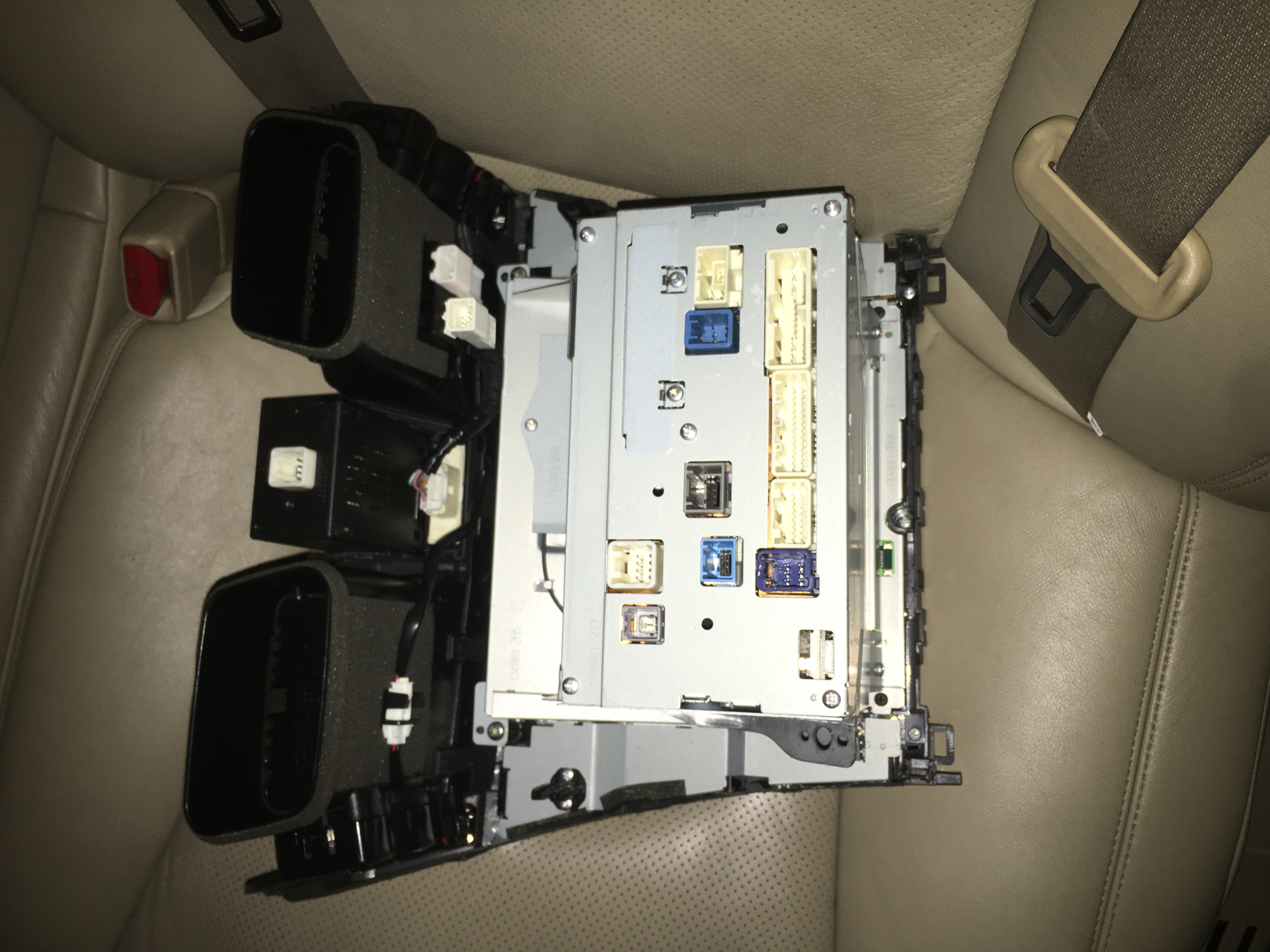

Vehicle Trim 2009 and below

Vehicle below 2009 Use Low Trim Harness

Vehicle 2009 and above use High Trim Harness

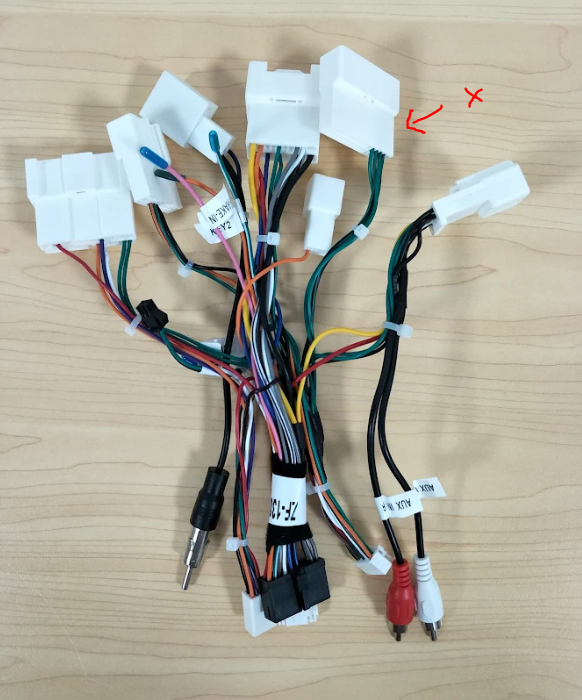

Low Trim Harness 24pin connector leave disconnected

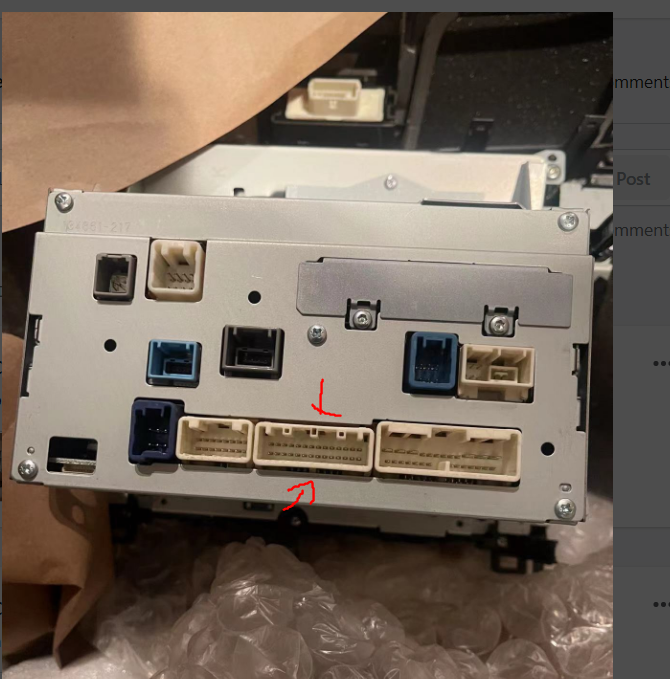

Year 2009 and above - 28pin connector - Hi Trim radio

Chris is the author of this solution article.
