Kia Optima - No Camera Trigger - No Camera Signal : Phoenix Automotive

Kia Optima - No Camera Trigger - No Camera Signal Print

Created by: Chris Shao

Modified on: Tue, 25 May, 2021 at 1:00 PM

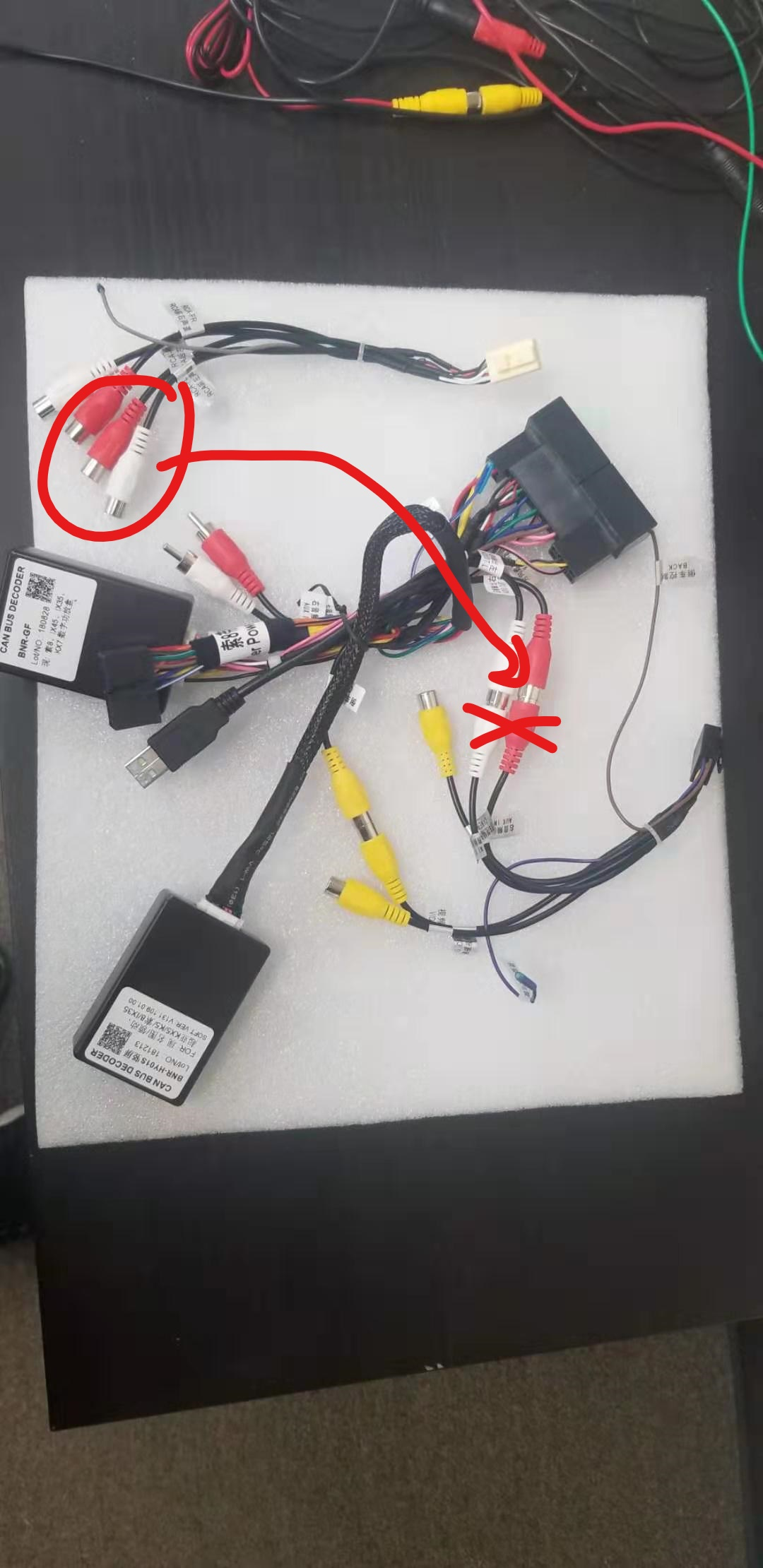

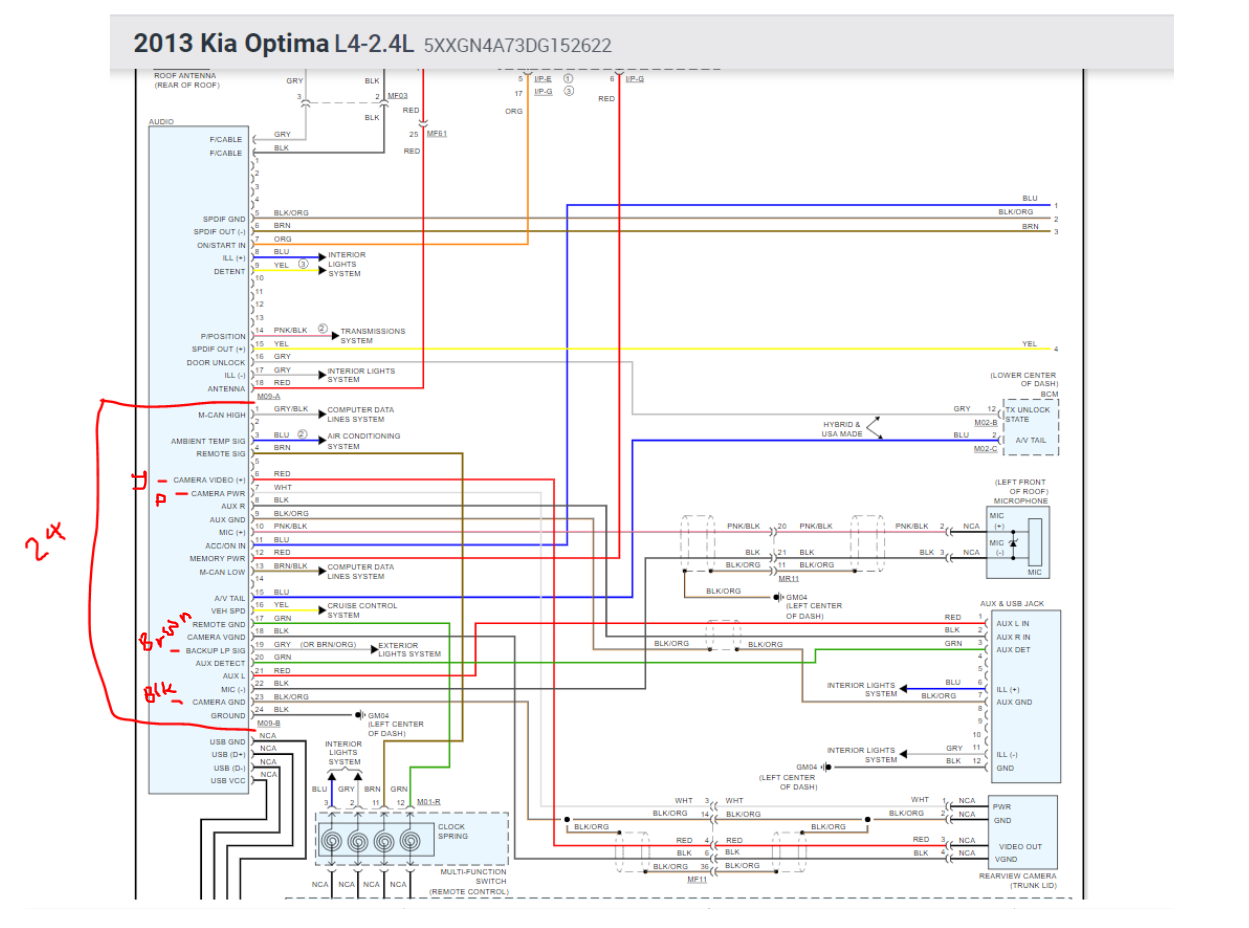

Brown Labeled Back is Trigger Wire

Purple Labeled (Chinese Writing) is Camera Power

Could be White or Yellow Wire on Car side that Correspond to Purple Wire Labeled in Chinese Writing

------------------------------------------------------------------------------------------------------------------------------------

Alternative W/o Navigation (amplifier)
