Need to Twist Tie 2 sets of Cable
For Sound
Orange Amp Control Connect to Power source (ACC red wire on the DVR Green Connector)
---------------------------------------------------------------
Check if Car type is Correct
For Mustang Premium - Mustang Hi
For Mustang Base (OEM 4inch Screen) - Mustang Lo
Settings,
Advanced (8861 / 666888)
Car Type is - ?
---------------------------------------------------------------
---------------------------------------------------------------

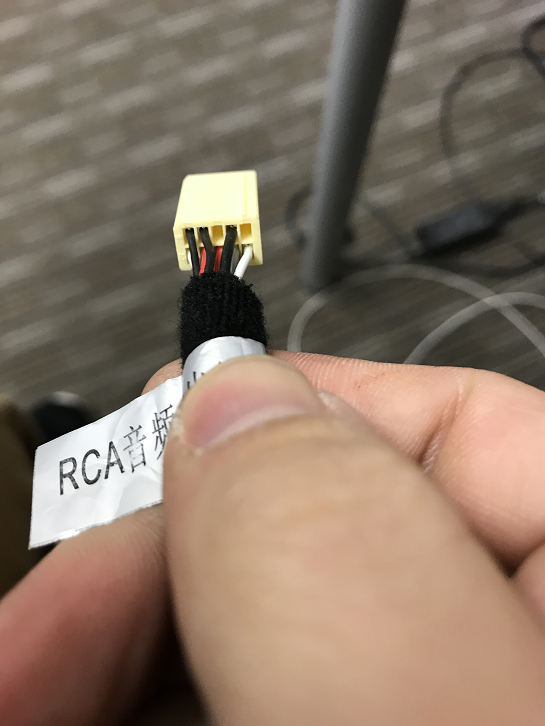

Mustang Premium - Check if Yellow Plugged is connected (should be on Main Harness)

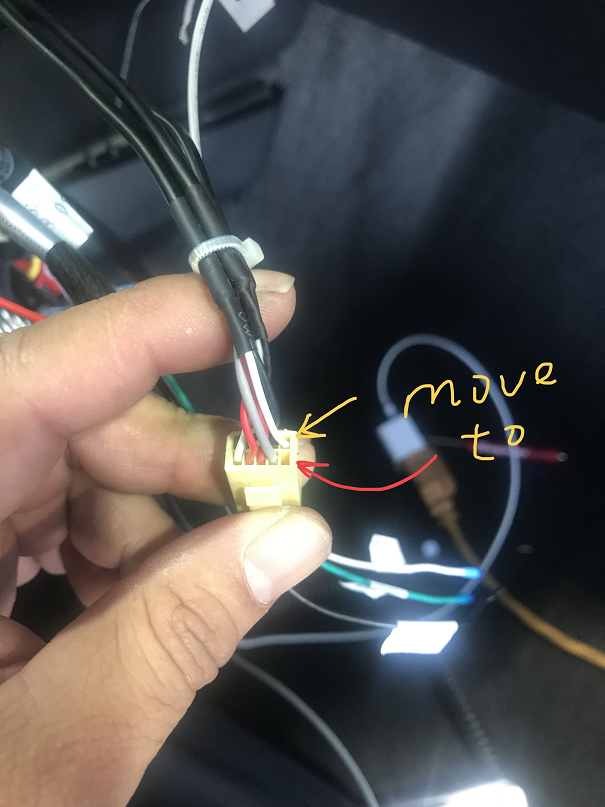

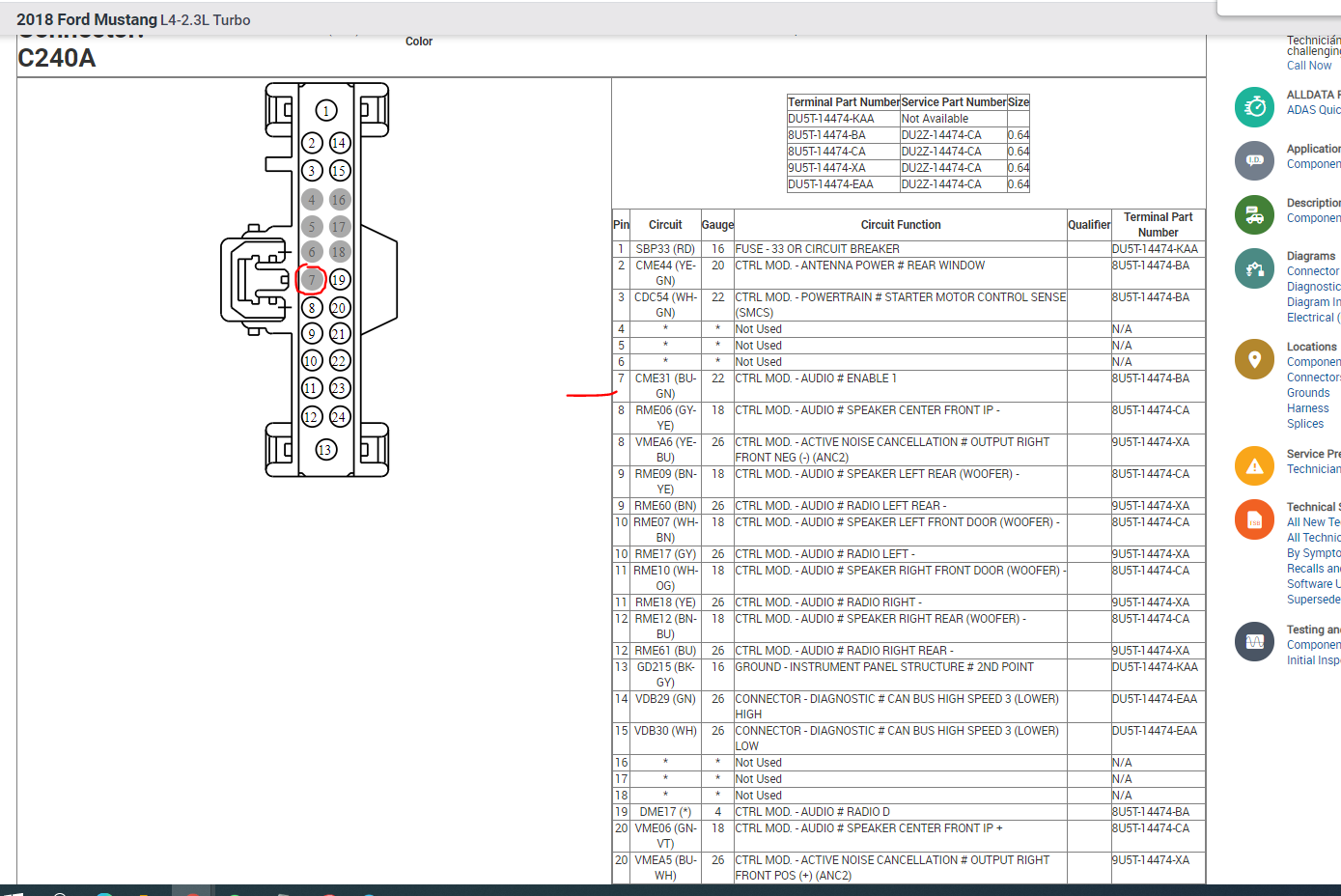

Check if the Wire Position is Correct

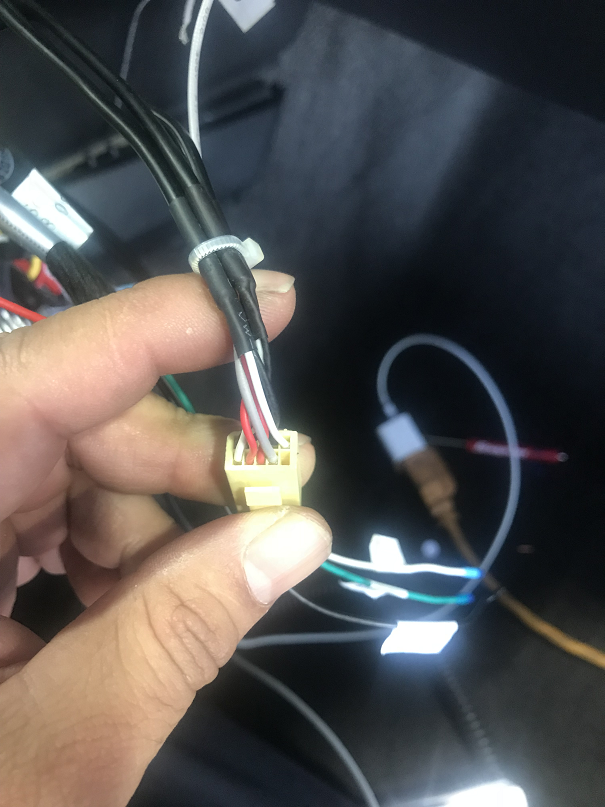

Correct Position -
Wrong Position -
Make Necessary Position Change -
--------------------------------------------------------------------
Can also Check in Settings, More Settings, Sound, Volumes
Check if all sliders are to Max
